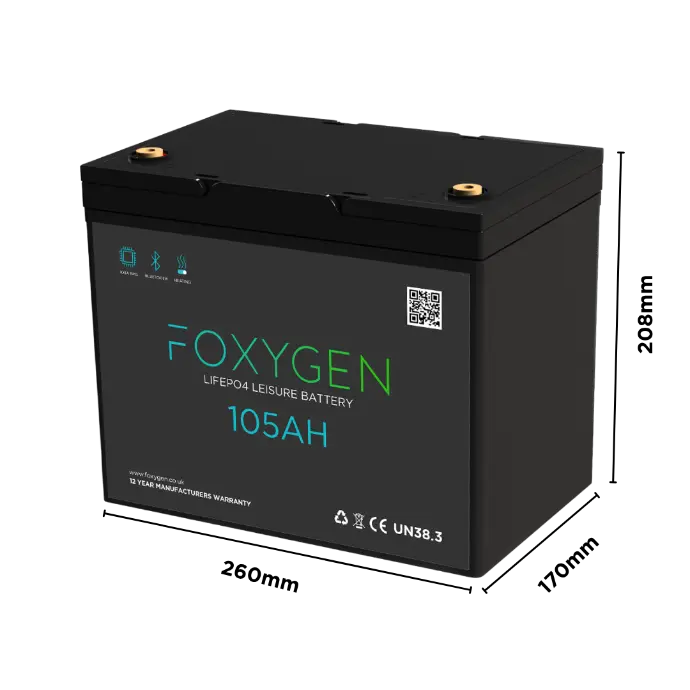

FOXYGEN-B105

Market Applications

This product is suitable for usage in the following applications

Motorhome

Robotics

Marine

Lighting

Light EV

Golf Cart

Storage

Cleaning

KEY BENEFITS

Higher qualified cylindrical cell


UL1973, UL9540, IEC62133, IEC62619 listed with Cycle life more than 3000times and excellent consistency.


Bluetooth


Can monitor the battery status(charge, discharge, current, temperature, cycle life and so on) and change the data for different applications.


Heat


Uniform internal heating is an important feature of our cold-weather performance batteries, as many external heating blanket options currently available cannot sense the internal temperature of the cells and may not be completely effective at heating the battery throughout. The system features proprietary technology that draws power from the charger itself, requiring no additional components. The entire process of heating and charging is completely seamless. Simply plug the battery into the regular lithium charger and the internal heating and monitoring system takes care of the rest.


Higher energy density with less weight


The energy density of cell is higher about 15% than others, which bring less weight.

Electrical Specifications

  • Nominal Voltage: 12.8V
  • Nominal Capacity: 105Ah
  • Parallel Connection: Max. 6 Units
  • Serial Connection: Max 4 Units
  • BMS: 4S100A
  • Bluetooth: Android/iOS
  • Heat: Yes (Switchable)
  • Circuit Protection: Over Charge, Over Discharge, Over Current, Over Temp, Short, Balance, Low Temp
  • Cycle Life: 6000times @80% DOD
  • Self Discharge: Less than 3% per month
  • Discharge Efficiency: 98-100% @1C

Charge Specifications

  • Charge Voltage: 14.4±0.2V
  • Standard Current: 21A
  • Fast Current 62.5A

Mechanical Specifications

  • Dimensions: 260mm x 170mm x 208mm
  • Approx Weight: 10.5Kg
  • Terminal Type: M8
  • Case Colour/Material: Black Plastic Case (ABS)
  • IP Rating: IP65
  • Cell type: 3.2V105Ah Prismatic Cell
  • Cell holder: Yes

Discharge Specifications

  • Standard Current: 21A
  • Max. Con. Current: 100A
  • Cut-Off Voltage: 10V

Temperature Specifications

  • Charge Temp: 0C to 55C (32F to 131F)
  • Discharge Temp: -20C to 60C（-4F to 140F）
  • Storage Temp: -5C to 45C (23F to 113F)

QUALITY CONTROL

Cell Match

More strict cell matching standard, the difference of Internal resistance is 1m and voltage is 5mV.


Automatic Cells Welding


Cells are assembled by Automatic welding equipment to ensure the quality reliability and consistency.


100% Cycle Test


All battery packs are 100% cycle tested (Fully Discharged→Fully Charged→Fully Discharged→60% Charged) before package and all test reports are stored.


Unique Tracking Number

All battery packs are lasered an unique number on the case side for quality tracking.


CERTIFICATIONS

  • UL1973 (Cell) UL2580 (Cell)
  • UL9540A (Cell)
  • IEC62660 (Cell)
  • CE (Cell / Pack)
  • UN38.3 (Cell / Pack)
  • IEC62619 (Cell) ROHS (Cell)
  • ISO9001
  • ISO45001
  • ISO14001
